Tuesday, February 7, 2012
Wednesday, June 30, 2010
Thursday, March 11, 2010
Digital Design Project
a car that relies on discrete components and digital logic to avoid obstacles . of course all made by me .
enjoy the pics ! a video will follow soon , after i iron out some kinks .
enjoy the pics ! a video will follow soon , after i iron out some kinks .
Saturday, February 6, 2010
The smart TANK is born !
Hello readers of my Blog ! , i gladly announce the birth of my new creation , the smart computer controlled (USB) wireless tank ! , software to be coded using "JAVA" by my Avid programming friends Ayman farhat and Nader sleiman . here are some pictures for you to enjoy ! :)
every thing is hand made !
the usb interface with the relay controller
a click of a mouse on the pics will enlarge them .
every thing is hand made !
the usb interface with the relay controller
a click of a mouse on the pics will enlarge them .
Sunday, January 31, 2010
Smart Tank
A sneak preview of my upcoming project , a smart tank aware of its position , controlled by a partially intelligent computer software , with data relayed back to the tank via a serial to RF interface . here is a setup pic if you want to take a look ! :)
Tuesday, January 12, 2010
"Sensy" the new "BOT" im working on
dubbed as "Sensy" this will be an ongoing project to experiment with different sensing technologies and
their implementation on controllable vehicles :)
their implementation on controllable vehicles :)
Friday, January 1, 2010
Tuesday, November 3, 2009
Thursday, October 1, 2009
The "arduino" tutorial
This is a fully functional version of the Arduino
There is no USB direct connection, so to program the duino you will need some kind of FTDI cable or an external programmer
Components list:
1 x 7805 Voltage regulator
2 x LEDs (different colors)
2 x 560 Ohm resistors (between 220oHm and 1K)
1 x 10k Ohm resistor
2 x 100 uF capacitors
1x 16 MHz clock crystal
2 x 22 pF capacitors
1 x 0.01 uF capacitor
1 x button
1 x Atmel ATMega168
1 x socket 28 pin Female and Male headers
1 x perfore board

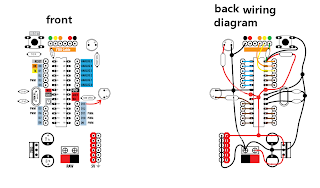

click image to view larger version
picture belongs to Guilherme Martins
the schematic
click image to view larger version
picture belongs to Guilherme Martins
images of my arduino done and finished
There is no USB direct connection, so to program the duino you will need some kind of FTDI cable or an external programmer
Components list:
1 x 7805 Voltage regulator
2 x LEDs (different colors)
2 x 560 Ohm resistors (between 220oHm and 1K)
1 x 10k Ohm resistor
2 x 100 uF capacitors
1x 16 MHz clock crystal
2 x 22 pF capacitors
1 x 0.01 uF capacitor
1 x button
1 x Atmel ATMega168
1 x socket 28 pin Female and Male headers
1 x perfore board
click image to view larger version
picture belongs to Guilherme Martins
the schematic
click image to view larger version
picture belongs to Guilherme Martins
images of my arduino done and finished
